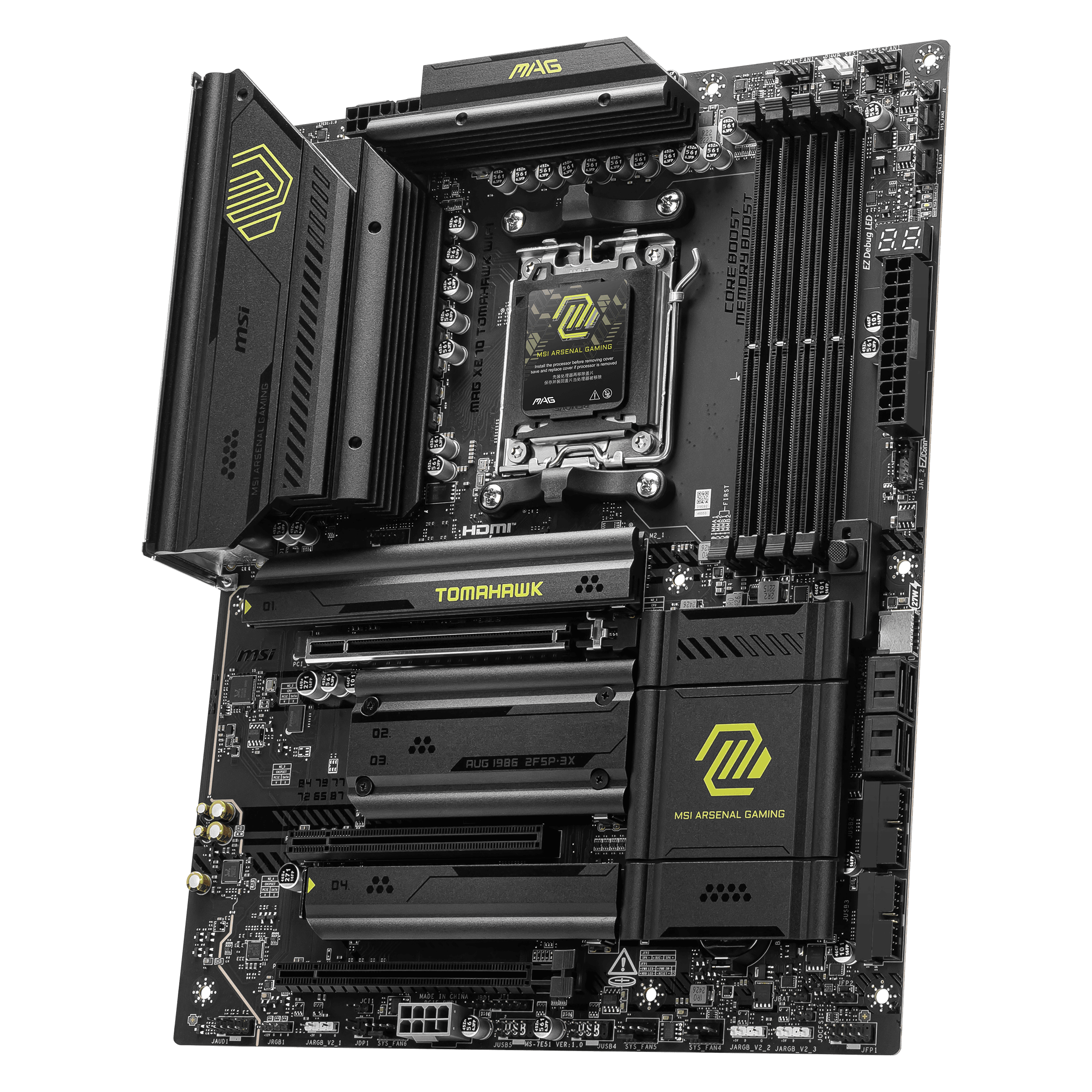

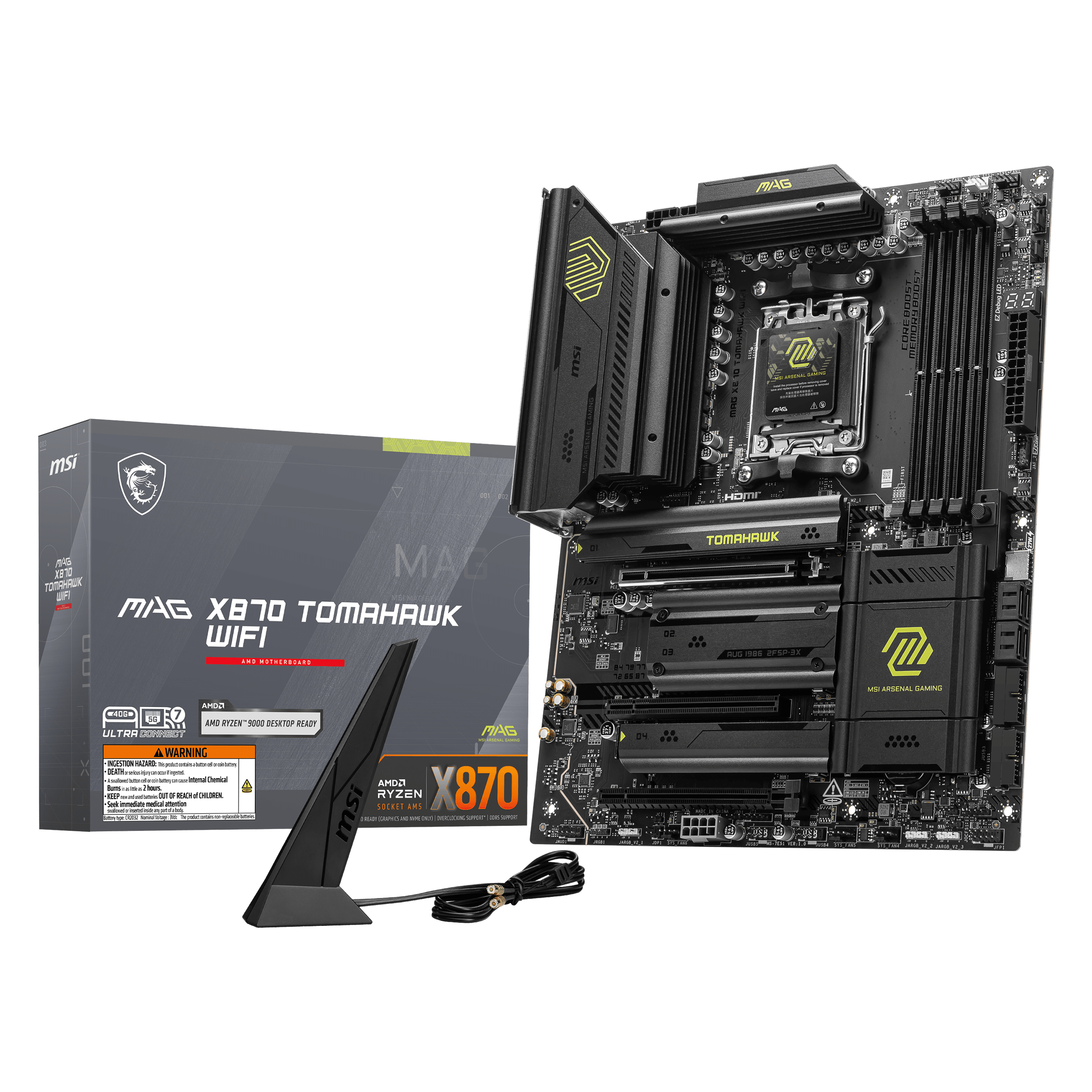

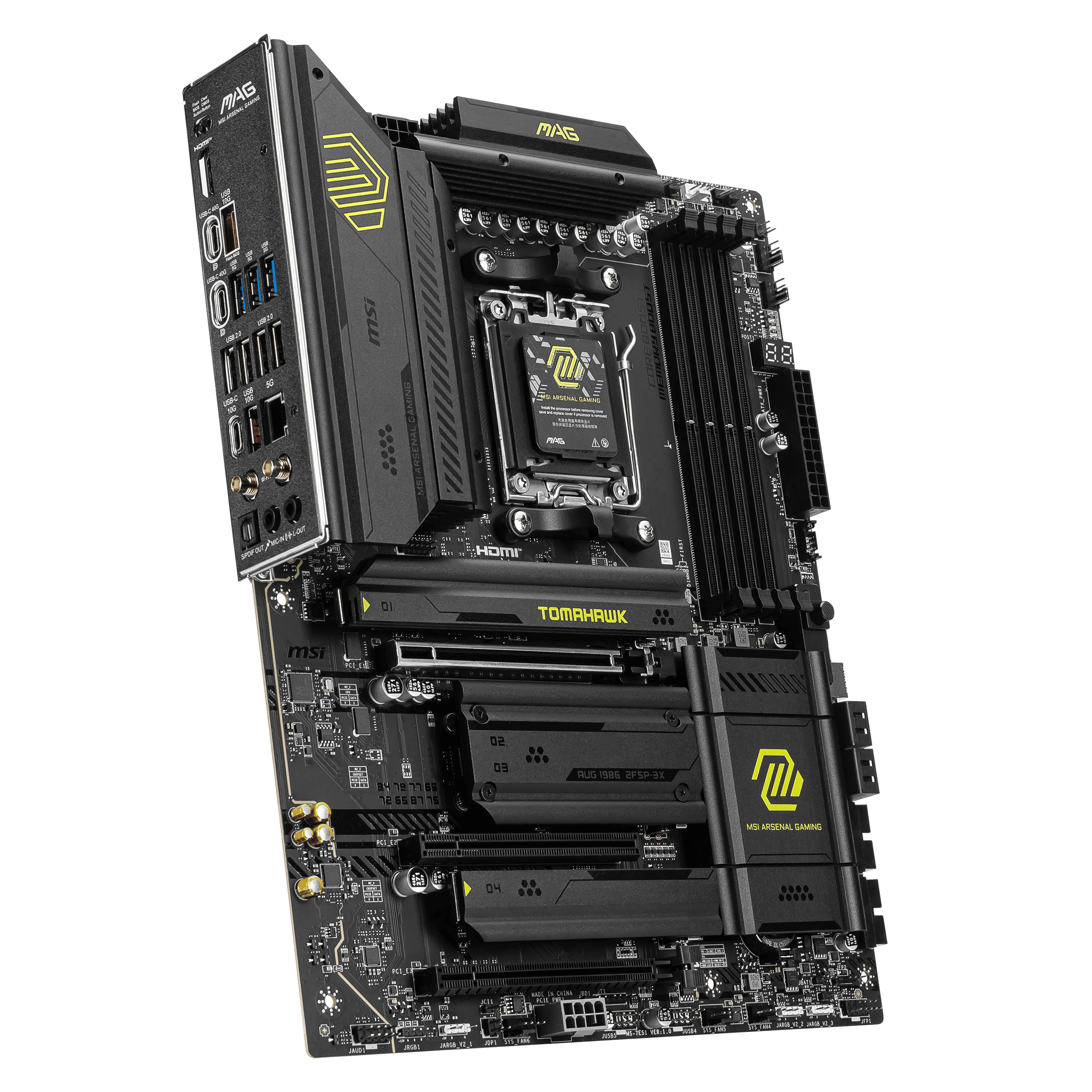

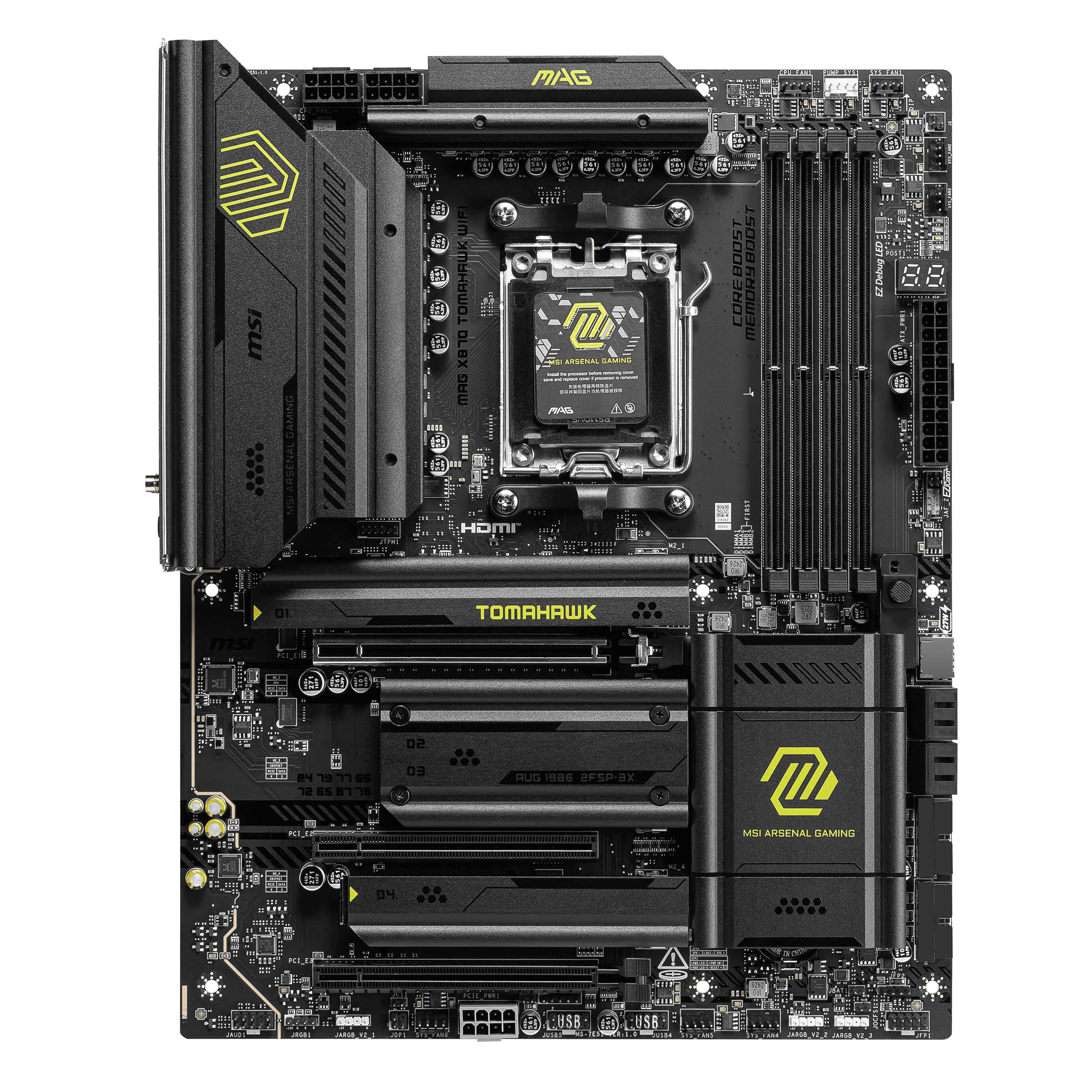

MSI MAG X870 TOMAHAWK WIFI AM5 ATX Gaming Motherboard

Export Specification - Copy And Paste Into Your Post

$298.99

Specification

Brand

MSI

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD X870

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s [Supports Memory Overclocking and AMD EXPO, AMD POR Speed and JEDEC Speed, Dual-Channel mode, Non-ECC and Un-buffered memory, CUDIMM (Clock Driver bypass mode only)

LAN

Realtek® 8126-CG 5G LAN

Wireless LAN

Wi-Fi 7 [Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps / Supports 802.11 a/ b/ g/ n/ ac/ ax/ be] The Wireless module is pre-installed in the M.2 (Key-E) slot

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM / 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. / The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Audio

Realtek® ALC4080 Codec (7.1-Channel USB High-Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel, Supports S/PDIF output

Storage

4x M.2 [M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 and supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 and supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 and supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 and supports 2280/2260 devices / The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

Onboard Graphics

1x HDMI (Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz), 2x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz) / Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Raid

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

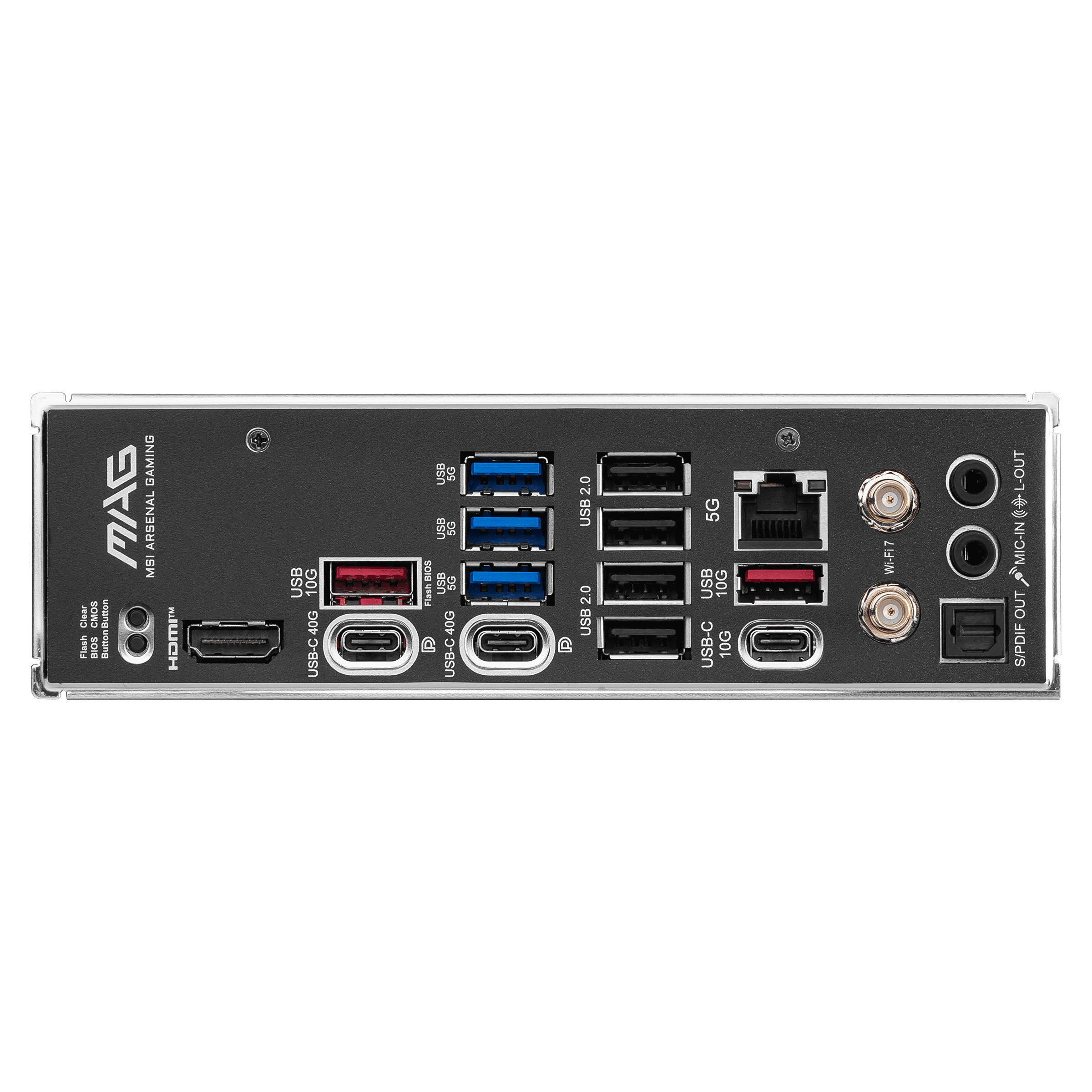

I/O (Rear)

Clear CMOS Button, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0, 5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button, HDMI™, USB 40Gbps Type-C, USB 10Gbps Type-C, USB 10Gbps Type-A

Expansion Slots

3x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot [Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)], PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.

USB (Front)

4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C

USB (Rear)

4x USB 2.0, 3x USB 5Gbps Type A, 2x USB 10Gbps Type A, 1x USB 10Gbps Type C, 2x USB 40Gbps Type C

Internal Connectors

1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports

Dimensions

9.60 in. x 12.00 in.

Warranty

Refer to Manufacturer's Warranty

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
