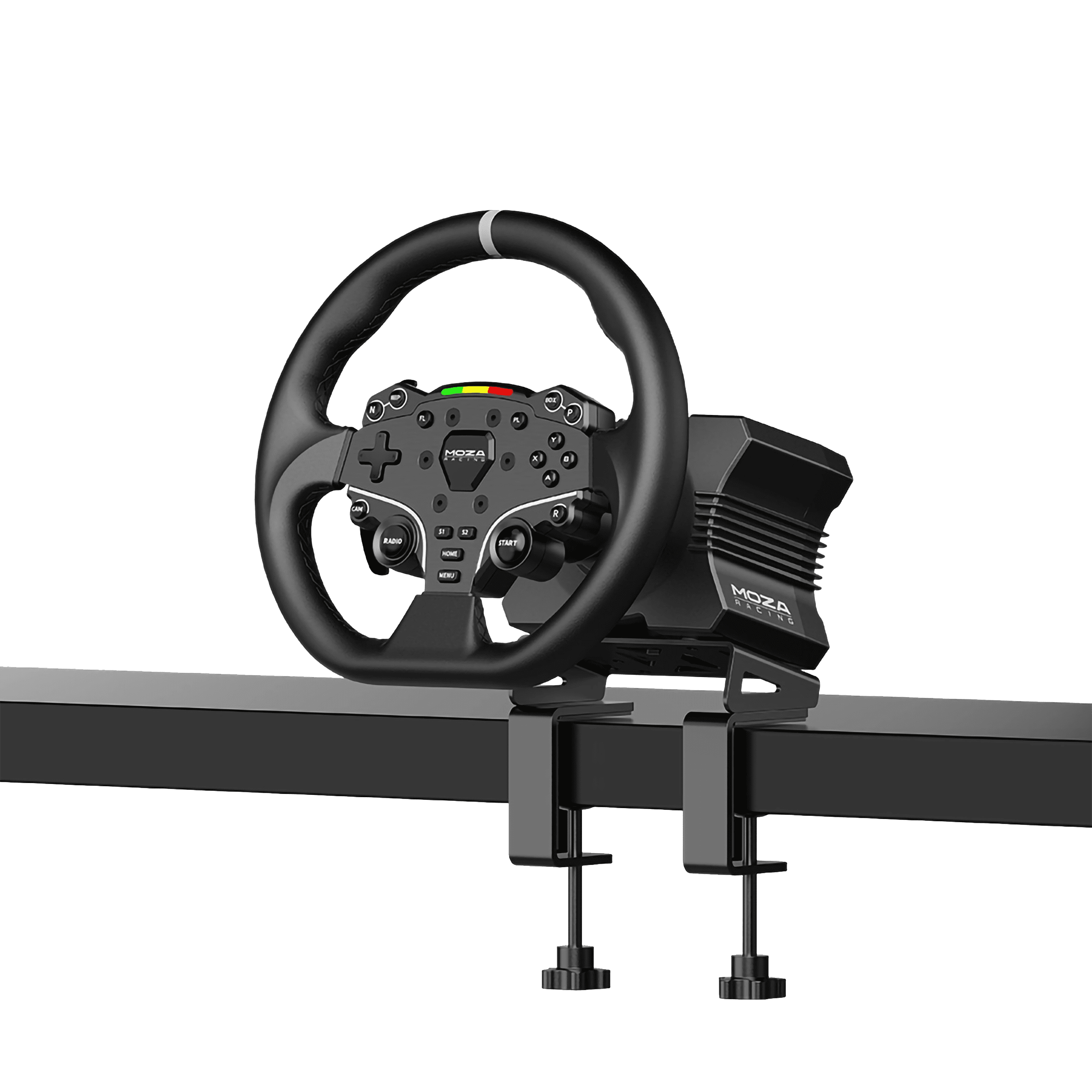

MOZA R5 Racing Simulator Bundle

mobile gallery
    MOZA R5 Racing Simulator Bundle

    $459


    Loading...

    Specification

    Brand

    MOZA Racing

    Platform

    PC

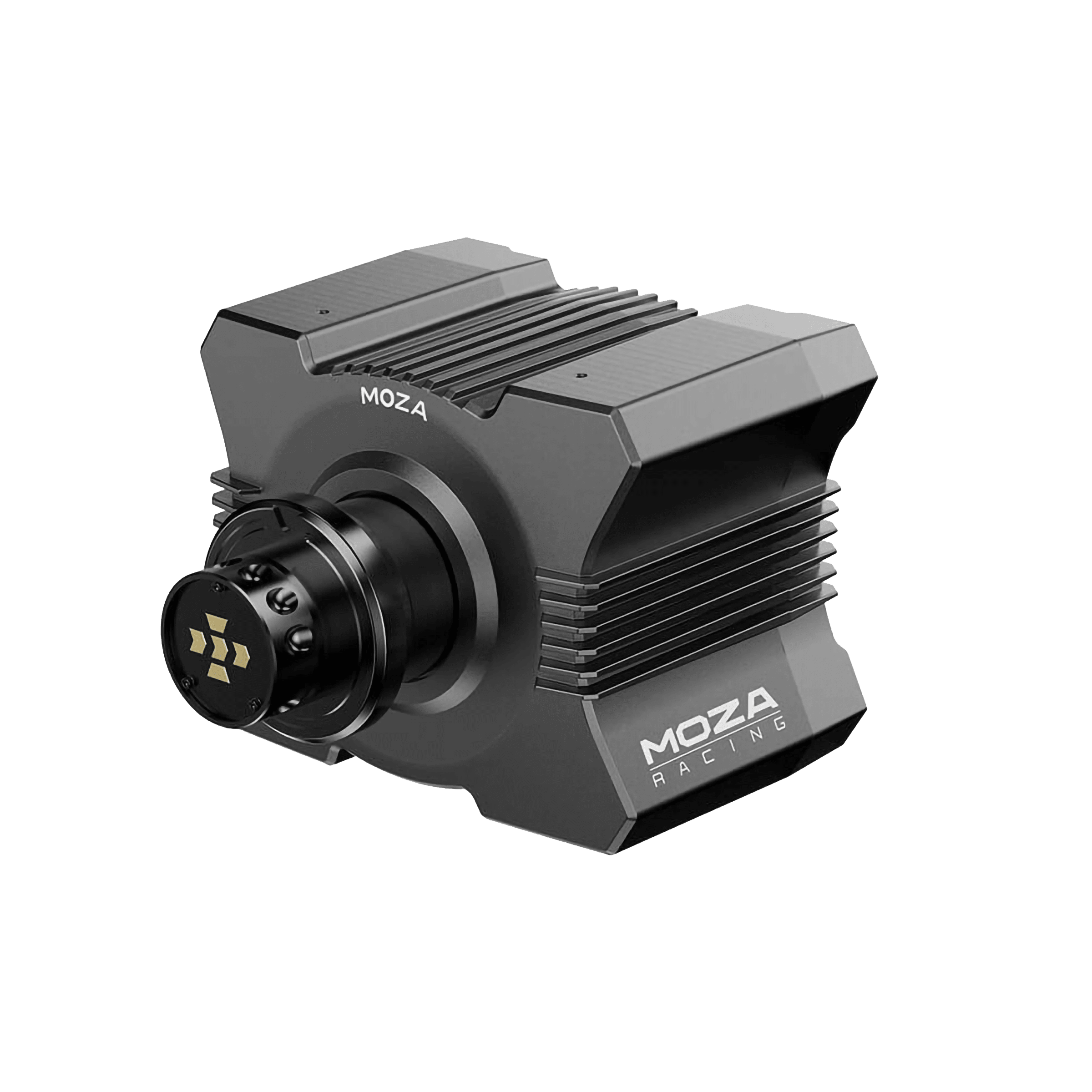

    DD R5 FFB Drive System

    Direct Drive

    DD R5 Max Steering Angle

    Infinite Rotation

    DD R5 Housing Material

    Aviation Grade Aluminum Alloy

    DD R5 Peak Torque

    5.5Nm

    DD R5 USB Refresh Rate

    1000Hz

    DD R5 Input Voltage

    110V~220V AC ->12V DC

    DD R5 Encoder Resolution

    15 bits

    DD R5 Mounting Method

    4 holes on the bottom

    DD R5 Online Firmware Upgrade

    Supported

    Quick Release

    Supported

    Interface

    Power, Data, Display, Pedals, Wheel Input

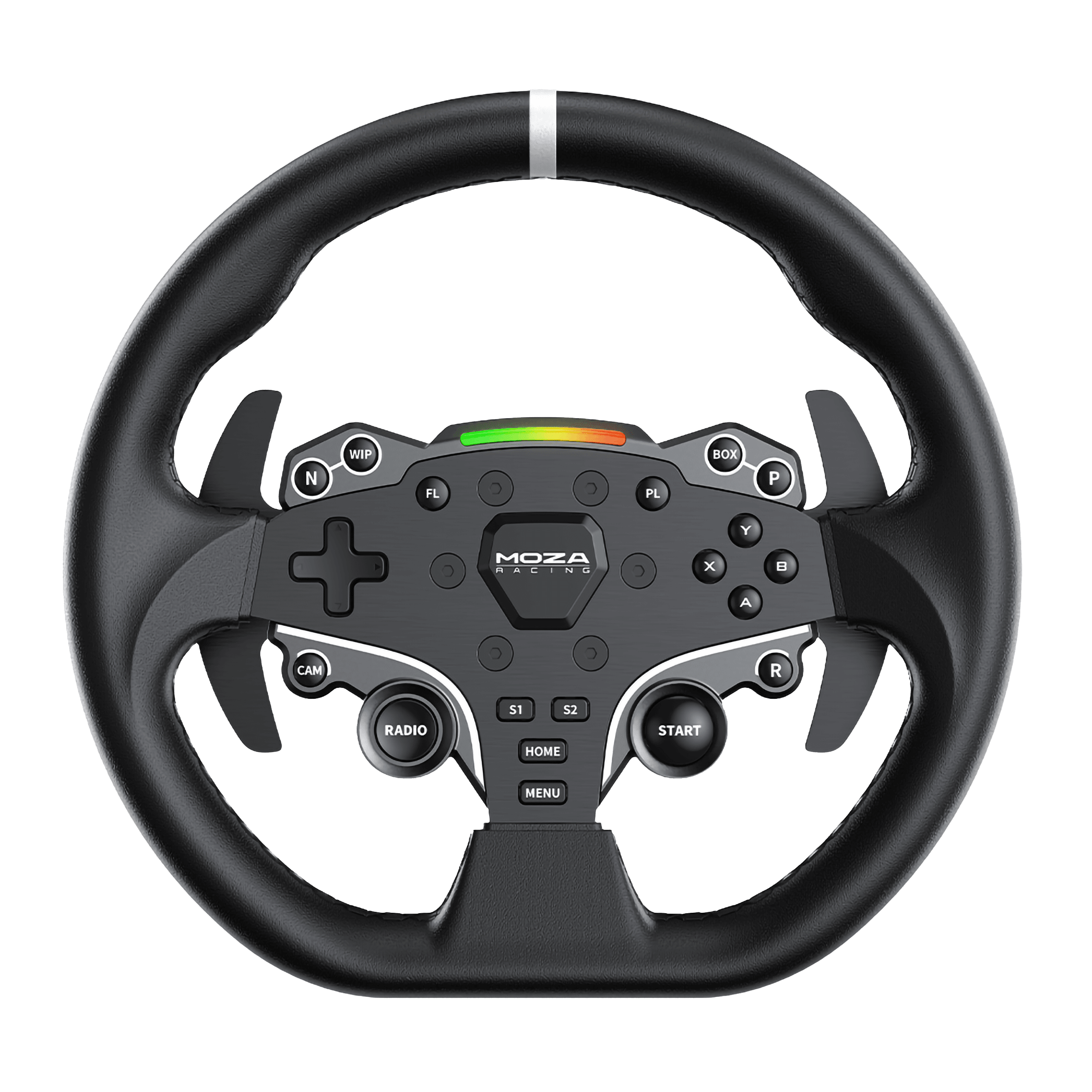

    ES Steering Wheel Wheel Material

    Microfiber Leather

    ES Steering Wheel Frame and Front Plate Material

    Aluminum Alloy

    ES Steering Wheel Dial Material

    Aluminum Alloy

    ES Steering Wheel Size

    11 inches

    ES Steering Wheel Buttons

    22

    ES Steering Wheel LED Lamp Beads

    10

    Intelligent Telemetry

    Supported

    Configurable LEDS

    Supported

    Disassembly method

    Quick Release System

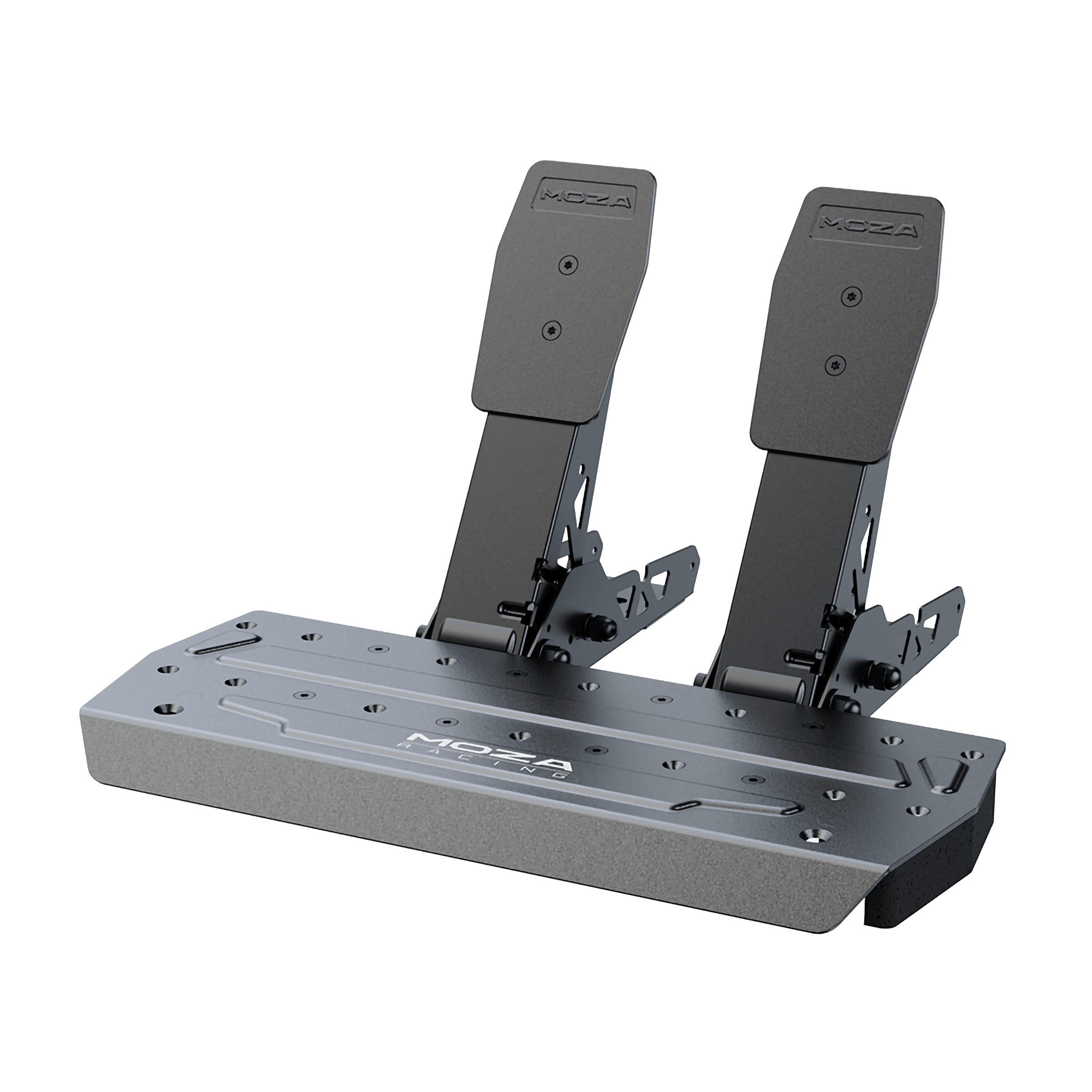

    SR-P Lite Pedals Material

    High-strength Steel

    SR-P Lite Pedals Plate Material

    High-strength Steel

    SR-P Lite Pedals Pedal Sensor Type

    Hall Sensor

    SR-P Lite Pedals Pedal Spacing and Height

    Adjustable

    Pedal Input Adjustment

    Supported

    Pedal Input Reversal

    Supported

    Pedal Output Curve Adjustment

    Supported

    Color

    Black

    Included

    R5 Wheel Base x 1, ES Steering Wheel x 1, SR-P Lite Pedals (No Clutch) x 1, Anti-Slip Pad, R5 Table Clamp, Power Supply, Power Cord - AC cable (1.5m) & DC cable (1.8m), USB Cable (1.8m), M4*10 Socket Screws x 12, M6*20 Socket Head Screws x 2, M8 Nuts x 3, M6x12 Socket Head Screws x 4, Pedal Fixed Rubber Columns x 2, 2.5mm Hexagonal Wrench x 1, 7mm Open End Wrench x 1, 5mm Hexagonal Wrench x 1, Type A to Type B USB Cable (1.8m) x 1, M8*12 Hexagonal Screws x 3

    Warranty

    Refer to Manufacturer's Warranty
    Loading...
    • 5.5 Nm of Torque from Direct Drive Power

    • Mount to table or desk

    • MOZA Pit House control center - check status of device, adjust settings, and load presets.

    • Unbeatable Rigidity & Durability
